Seal Kit for Ford Backhoe steering Cylinders 20mm .787" rod OD (chrome rod diameter). This kit contains enough seals for 2 cylinders. Fits many models. Similar to 86516209 except these kits include the piston seal(OEM kits do not) and they do not include the metal washer(s) or the gland retaining wire that are included in the OEM kits, this kit contains only the seals & the rod seal retaining ring. Note: actual seal colors may vary. Please check your chrome rod diameter, this kit is for the 20mm .787" rod, it will not fit the .750" rod aftermarket replacement cylinders.
An additional identifying feature of these cylinders is that both hoses attach at the base end of the cylinder, there are no tubes welded on the outside of the cylinder, and at the rod end, the gland has pin holes on the face of it for a spanner wrench to turn the gland, it does not have 3 small screws or bolts in the face of it. If your cylinder has the 3 screws or bolts on the face of the gland and a .685" rod diameter, you need our other seal kit.

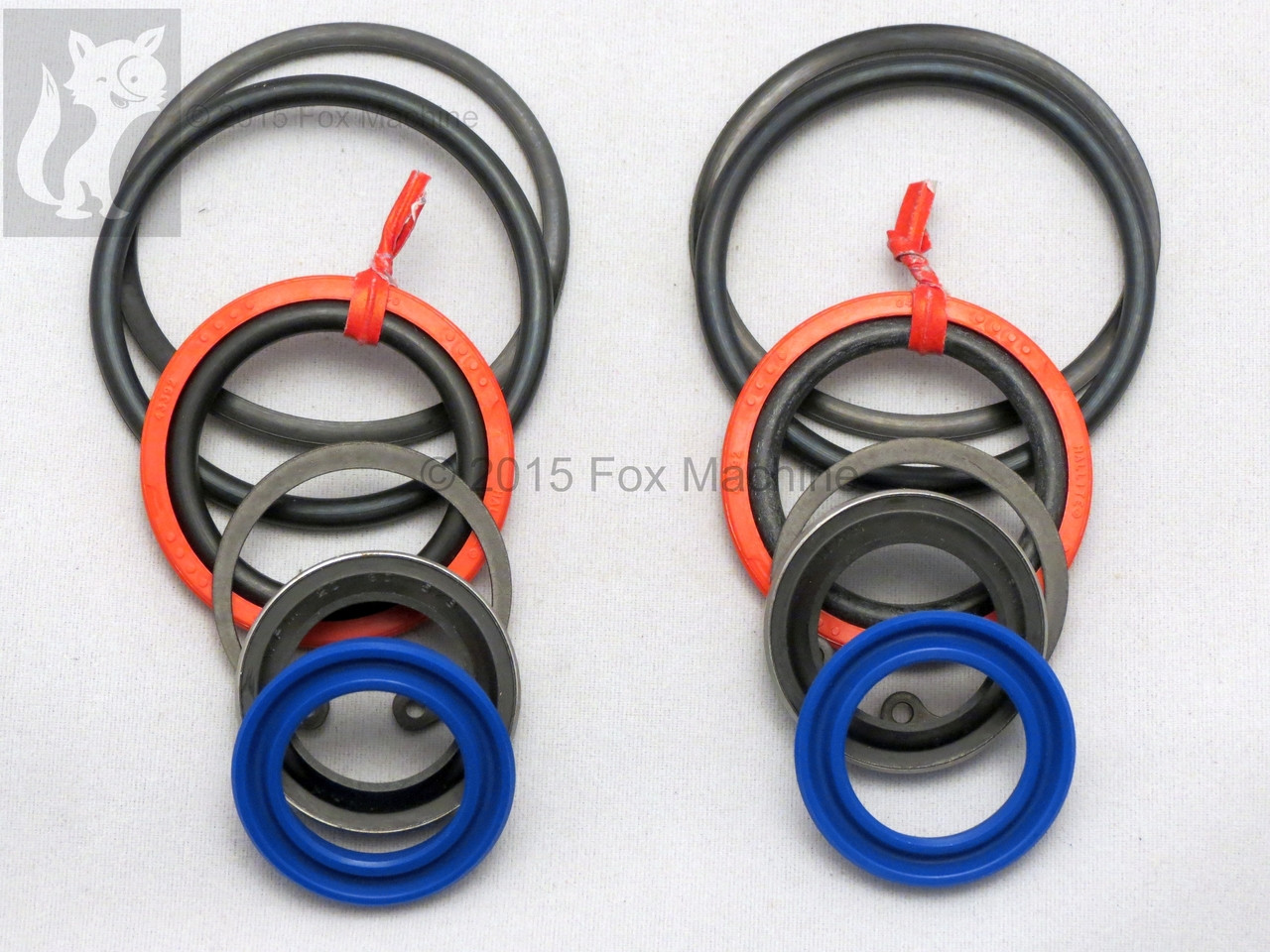

Kit contains 2 ea. of the following:
Rod seal retaining ring
Gland backup ring
Piston to rod o-ring (not shown in picture)
Piston seal (2 piece urethane ring & o-ring)
Fits the following backhoe models with dual steering cylinders model year (July) 1987 & up:
555, 555A, 555A-XL, 555B
And also older models that have had the original .685" rod cylinder replaced with the Ford (not aftermarket) 20mm rod replacement cylinder part number 86516202.
If you don't know your model year just send us your "Unit Code" or "Production Code" number & we can decode it for you.
